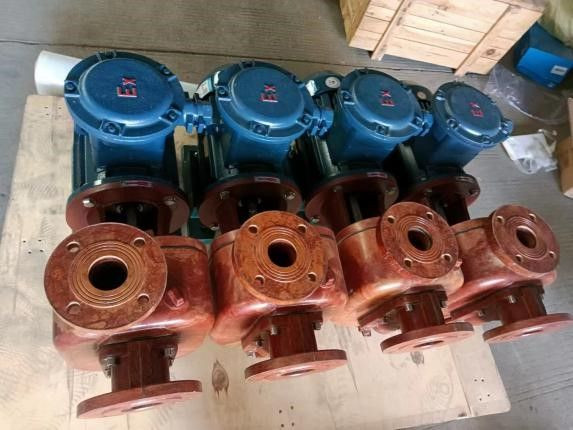

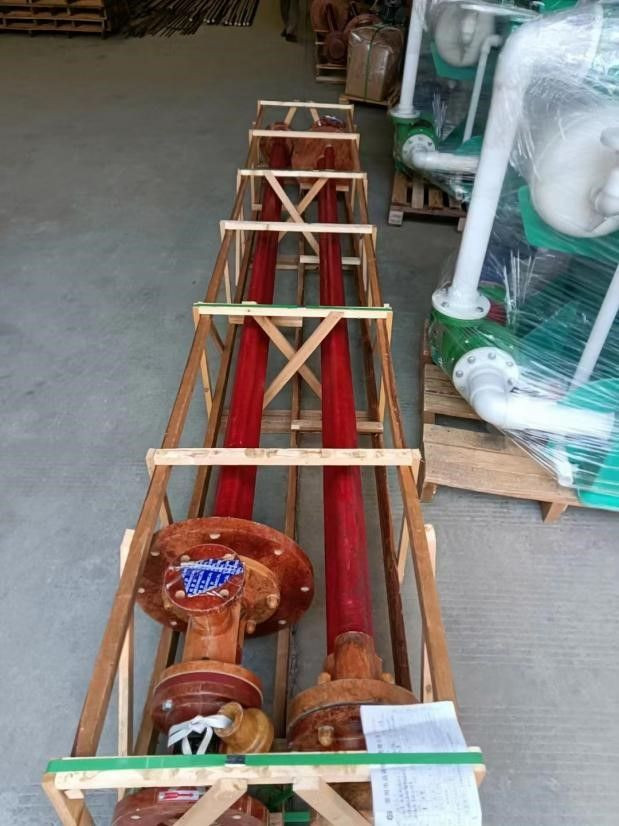

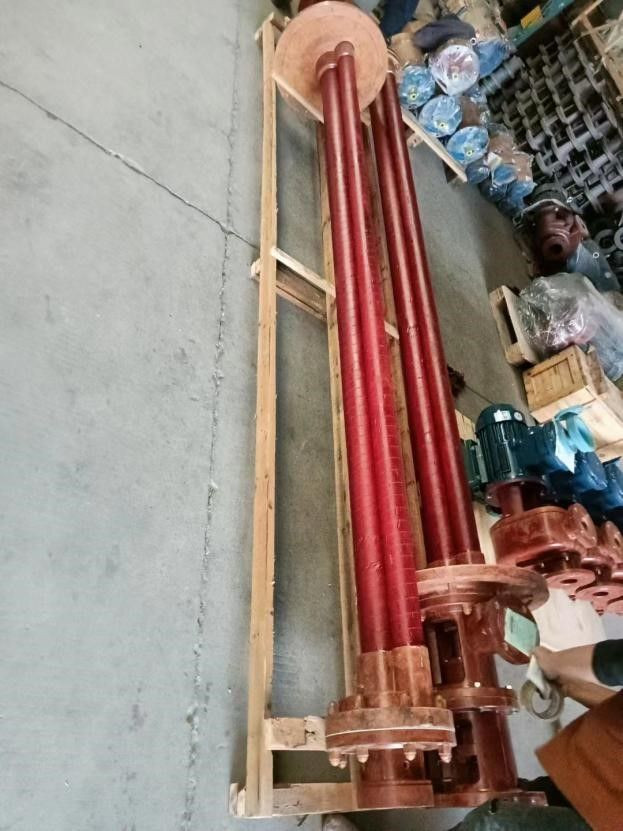

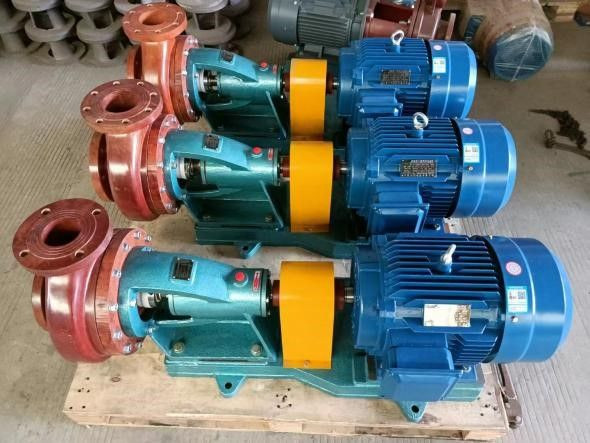

FRP pump refers to the pump made of FRP (also known as glass fiber reinforced resin) for parts in contact with the liquid to be fed. The FRP pump for chemical industry is generally a centrifugal pump, and its impeller, vortex chamber, shaft sealing cavity and suction and discharge nozzles are made of epoxy resin, phenolic resin, polyester resin and other resins and glass fibers Pressed and cured. A type of corrosion-resistant pump. The flow rate of FRP pump can reach 105m3/h, the head is 60m, the maximum discharge pressure is 0.6MPa, and the operating temperature is below 110°C. It is suitable for transportation at room temperature, the concentration of 50%-70% sulfuric acid temperature within 60 °C, 0-49% concentration of sulfuric acid within 110 °C, any concentration of hydrochloric acid, etc., can be used within 100 °C. Not suitable for conveying alkaline liquids and nitric acid. It is an ideal energy-saving new generation of chemical pump, FRP centrifugal pump can be divided into: S, FS type horizontal, SL type vertical, FSY type submerged type, and has been widely used in the chemical industry.
